SICOMO - Bekaa, Lebanon
Piping & Instrumentation Diagram of Waste Incineration/Gasification Power Plant ProjectControl philosophy & logics as well diagram creation of the following scopes: Boiler feed water system, Water supply & treatment system, Cooling water system and Heavy fuel oil system.
Creation of composite P&ID combining all scopes of different suppliers into a main project diagram.
SICOMO - Waste Incineration Power Plant Project P&ID
SICOMO - Feed Water System P&ID

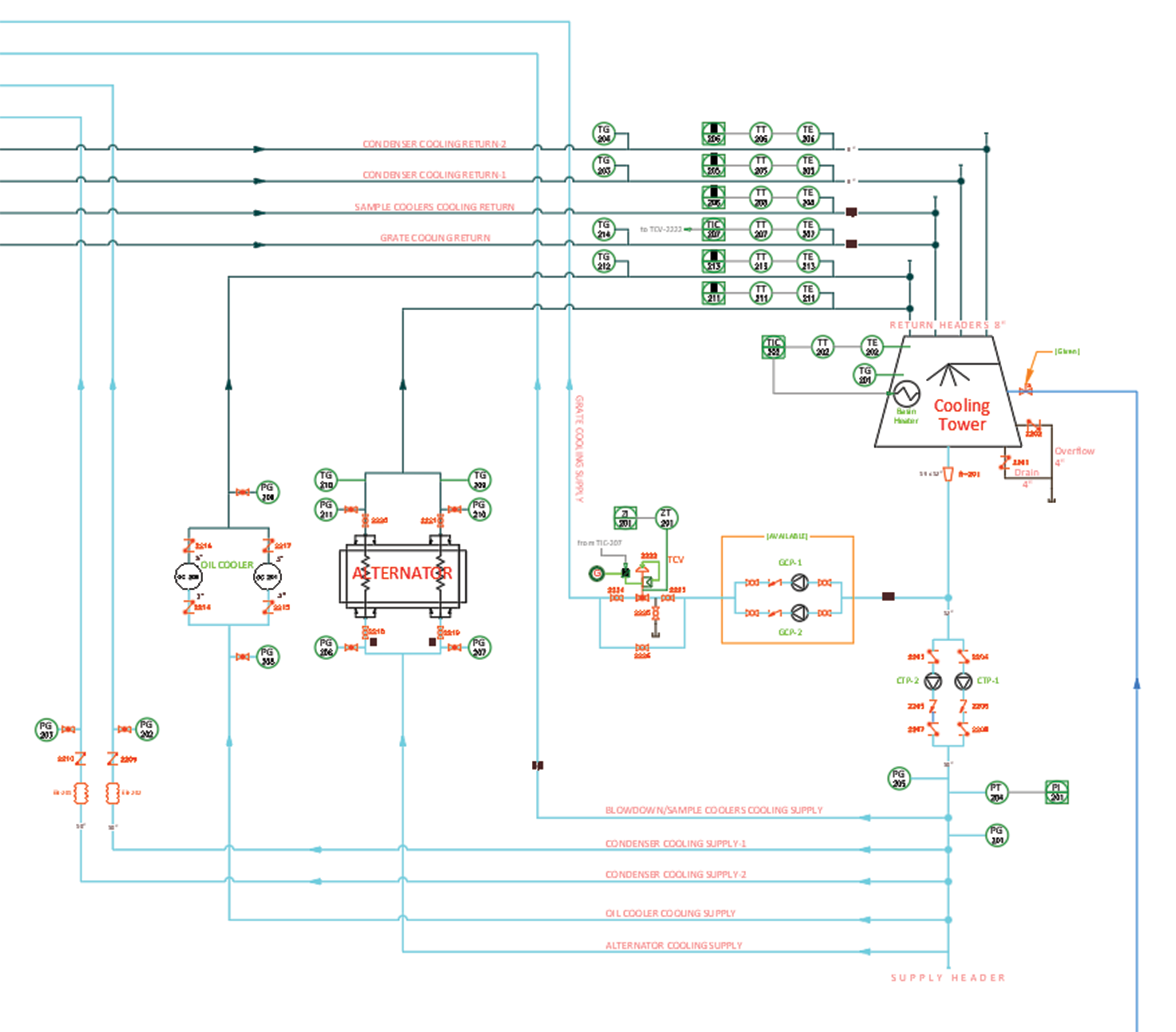

SICOMO - Cooling Water System P&ID
SICOMO - Heavy Fuel Oil System P&ID

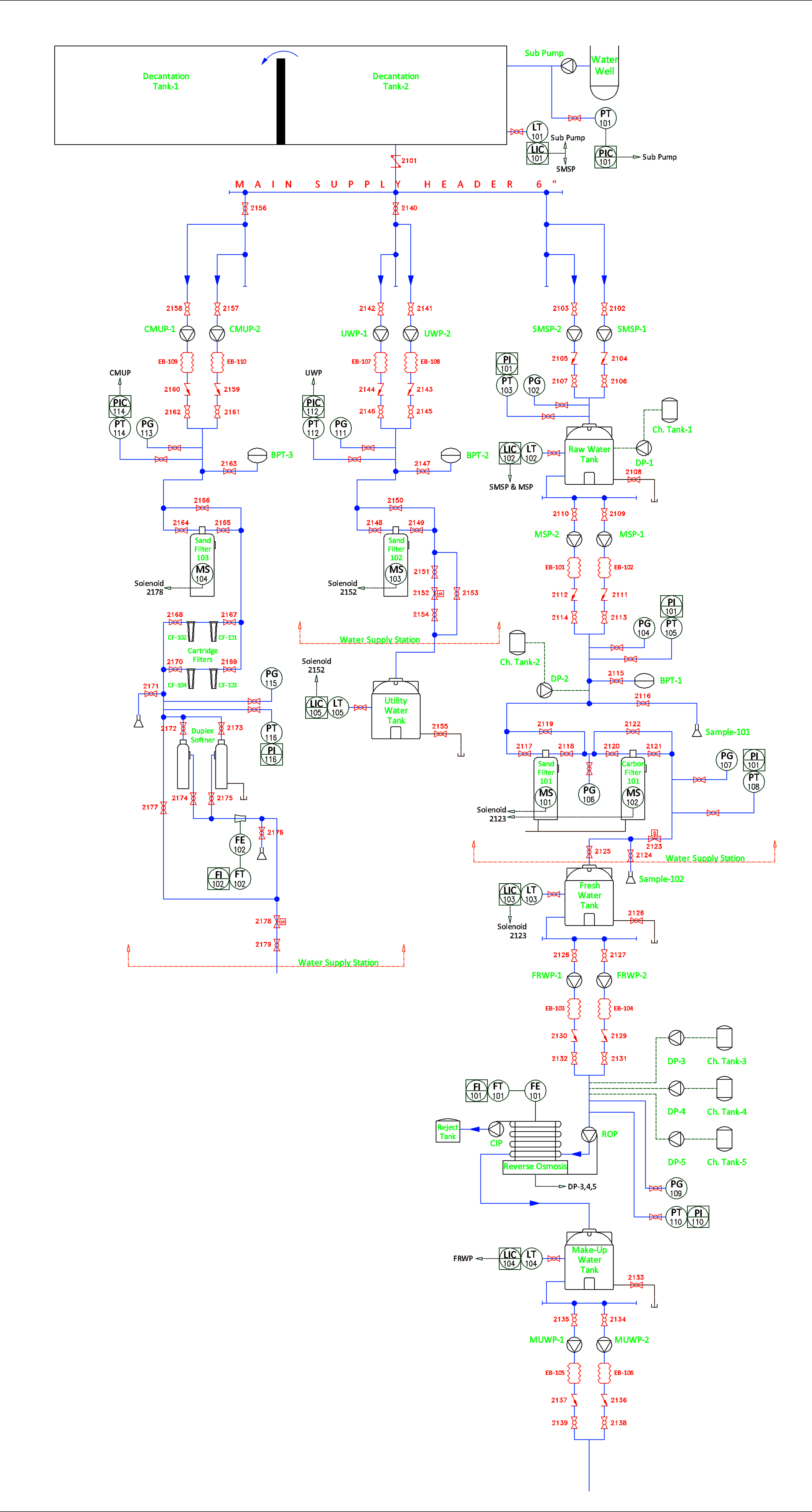

SICOMO - Water Treatment & Supply System P&ID
DIFCO - Bekaa, Lebanon
Piping & Instrumentation Diagram of Water Treatment StationP&ID as-built for existing water treatment process at DIFCO's FMCG production plant.
DIFCO - Bekaa, Lebanon
People & Product Flow DiagramFlow diagram for a new FMCG production plant by DIFCO.

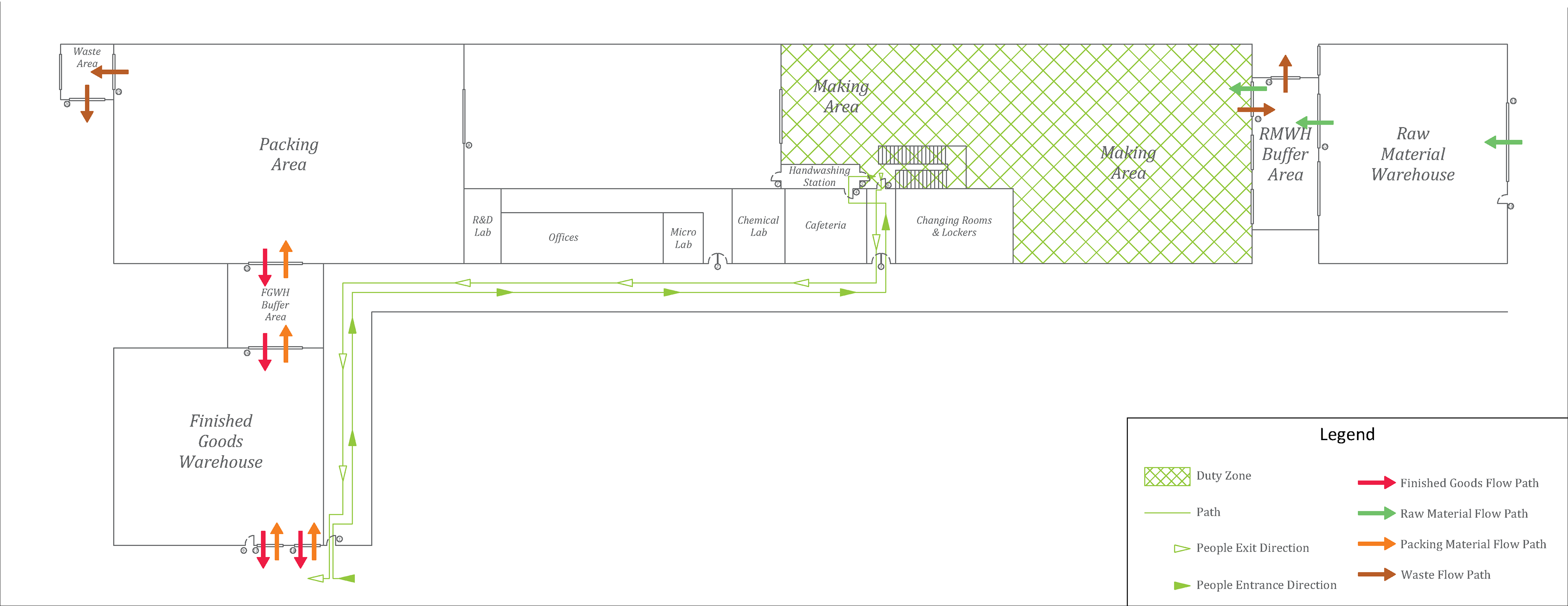

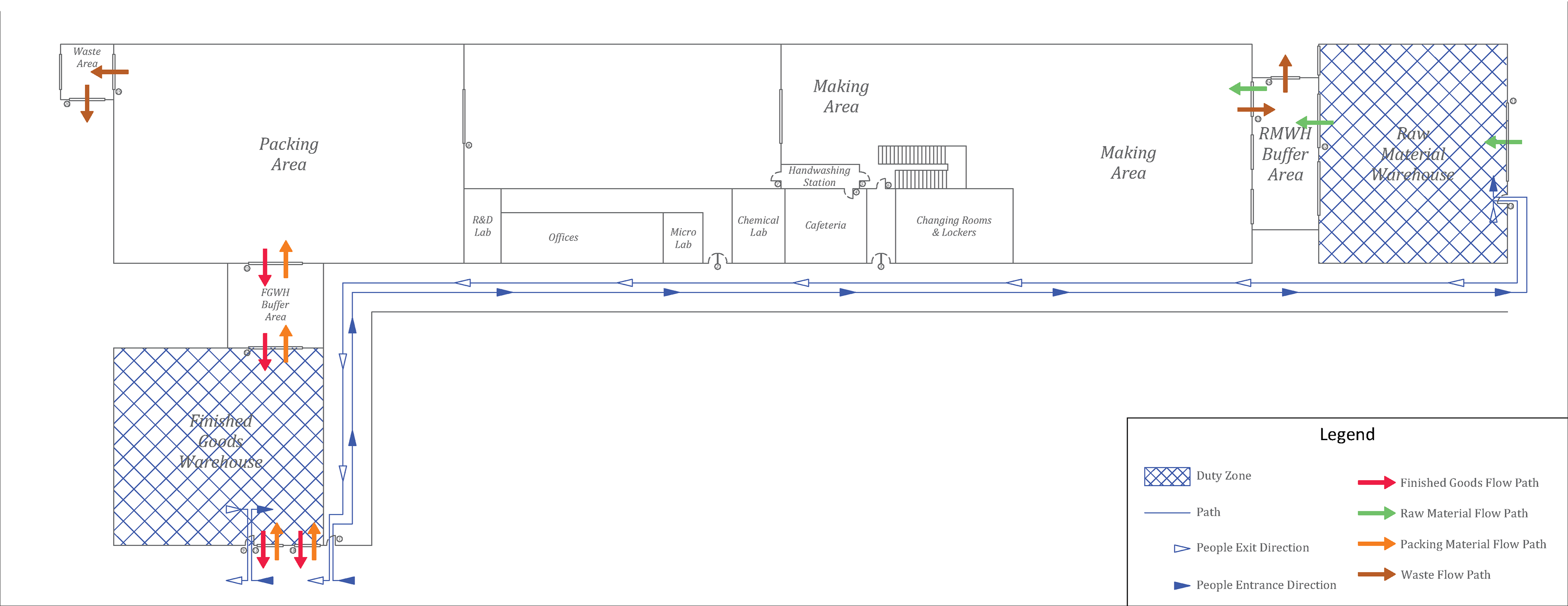

DIFCO - People & Product Flow Diagram 1

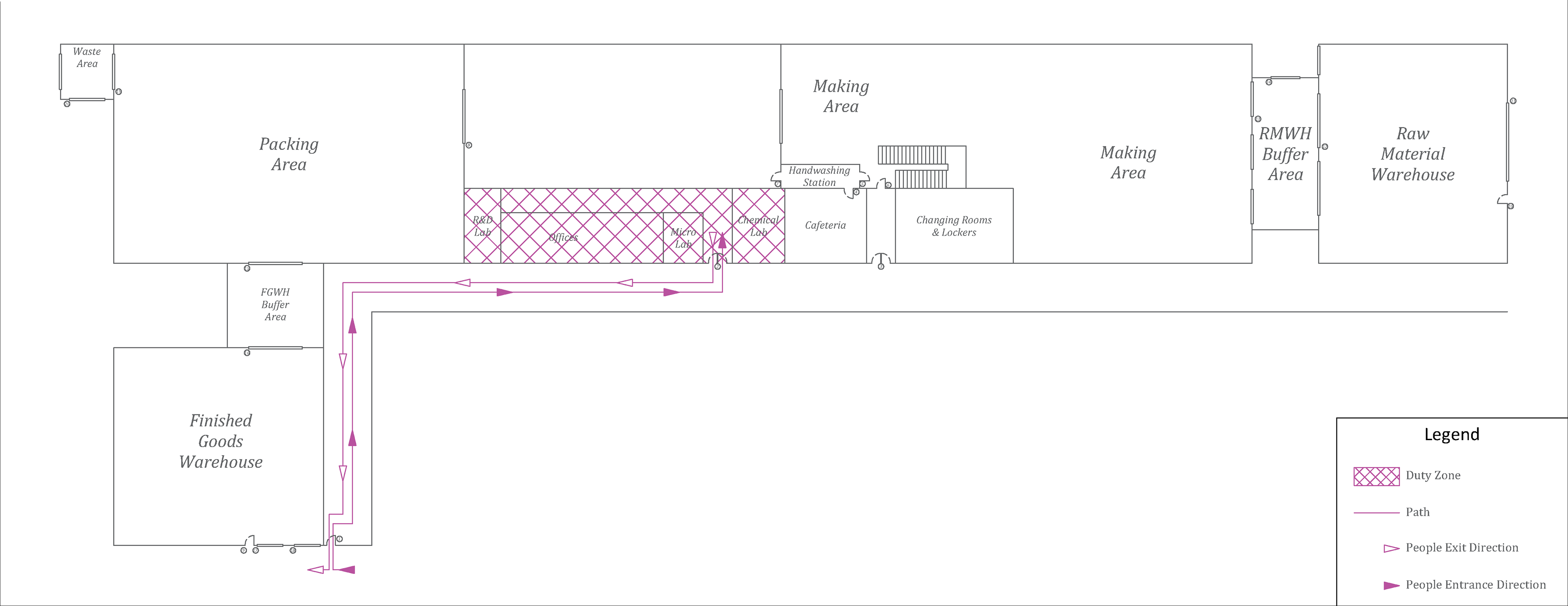

DIFCO - People & Product Flow Diagram 2

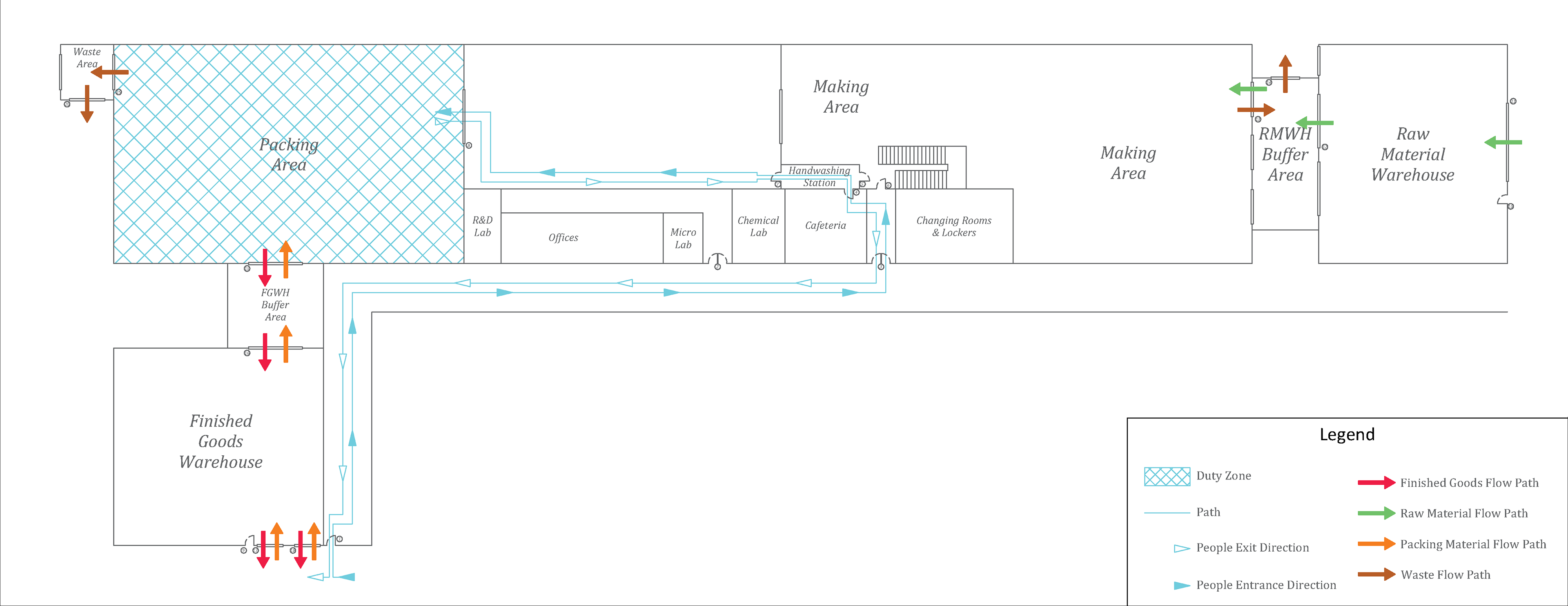

DIFCO - People & Product Flow Diagram 3
DIFCO - People & Product Flow Diagram 4
DIFCO - Bekaa, Lebanon
Piping & Instrumentation Diagram of Fire Fighting Water SystemP&ID as-built for existing fire fighting water system at DIFCO's FMCG production plant.

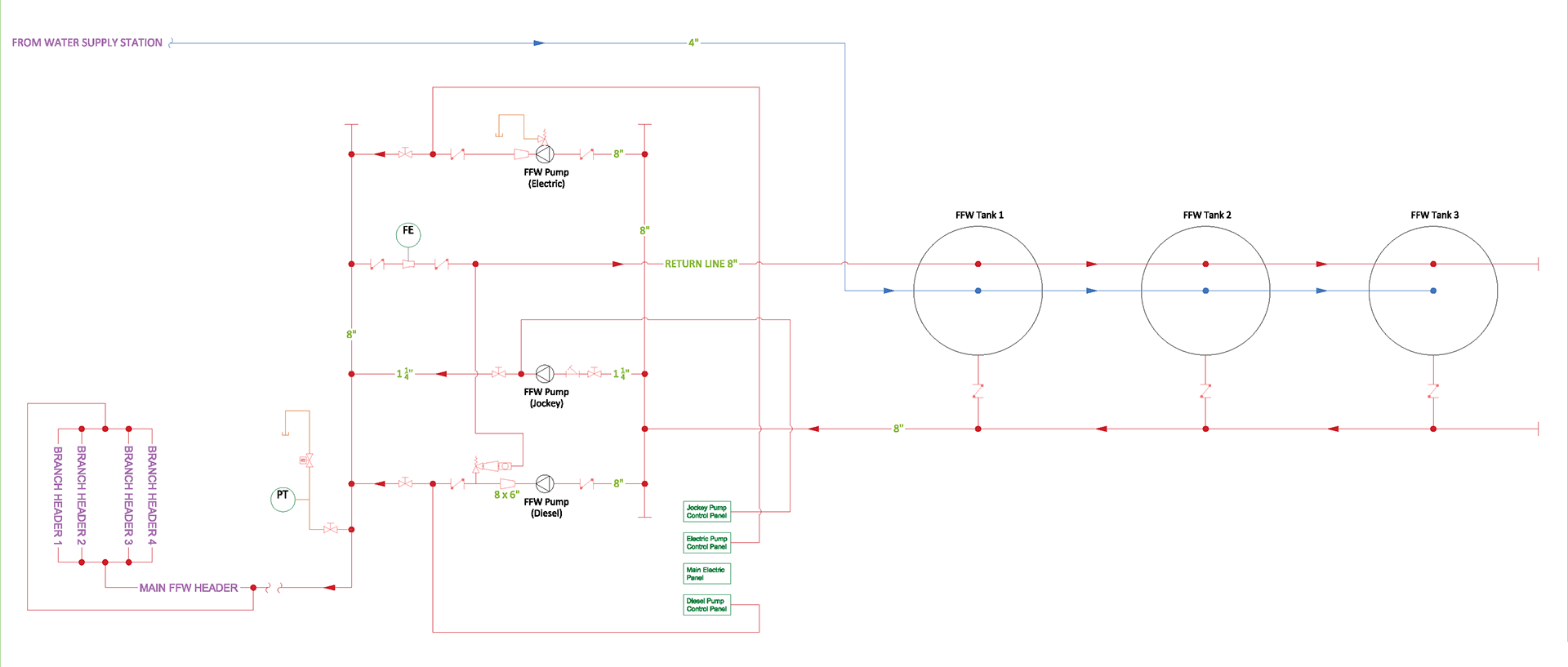

DIFCO - Fire Fighting Water System P&ID
Uni-recycling - Iraq
Piping & Instrumentation Diagram of Iraq Sewage Treatment Plant & Iraq Temporary Lifting Station ProjectsP&ID drawings of Iraq sewage treatment plant & Iraq temporary lifting station for Uni-recycling.

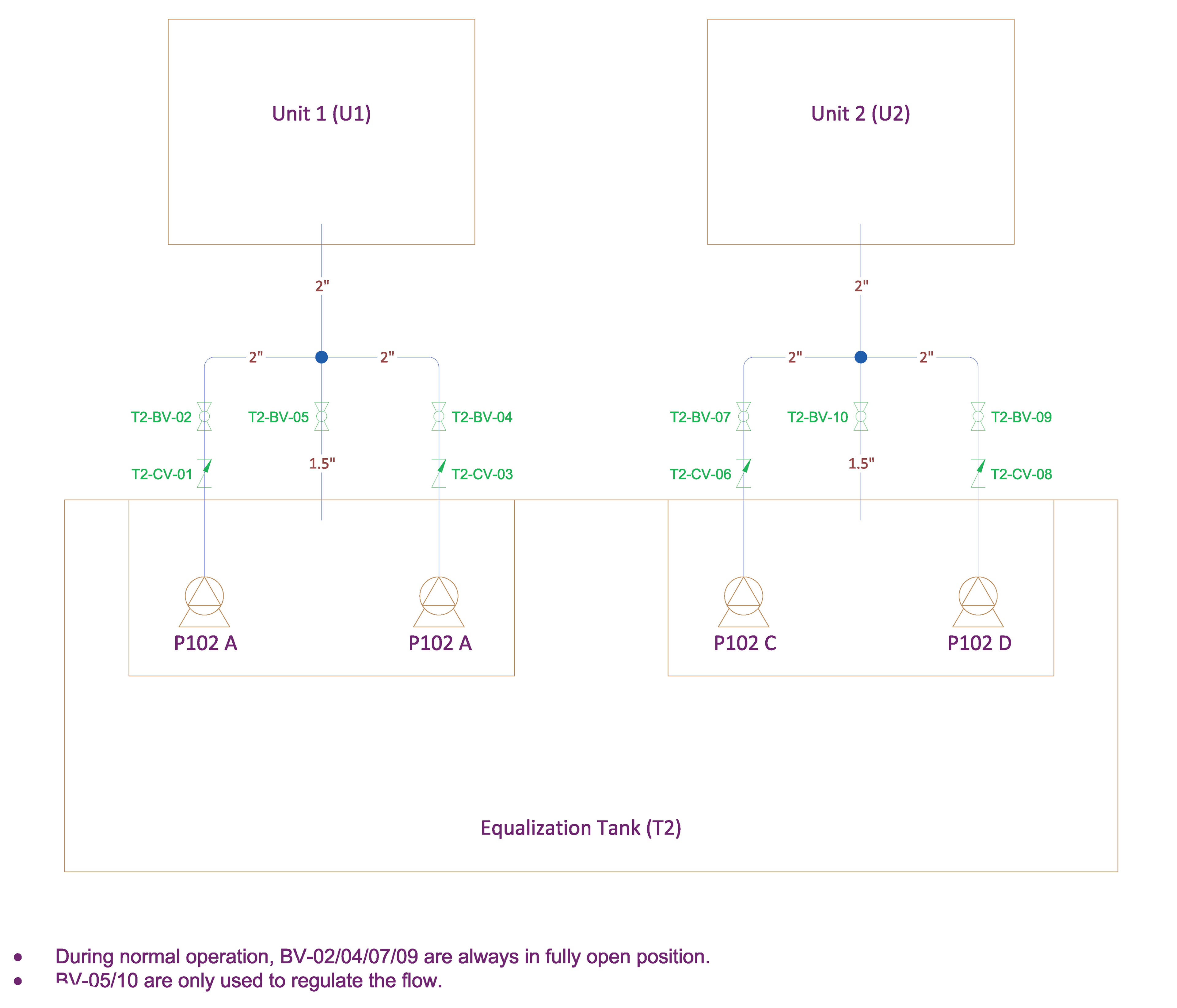

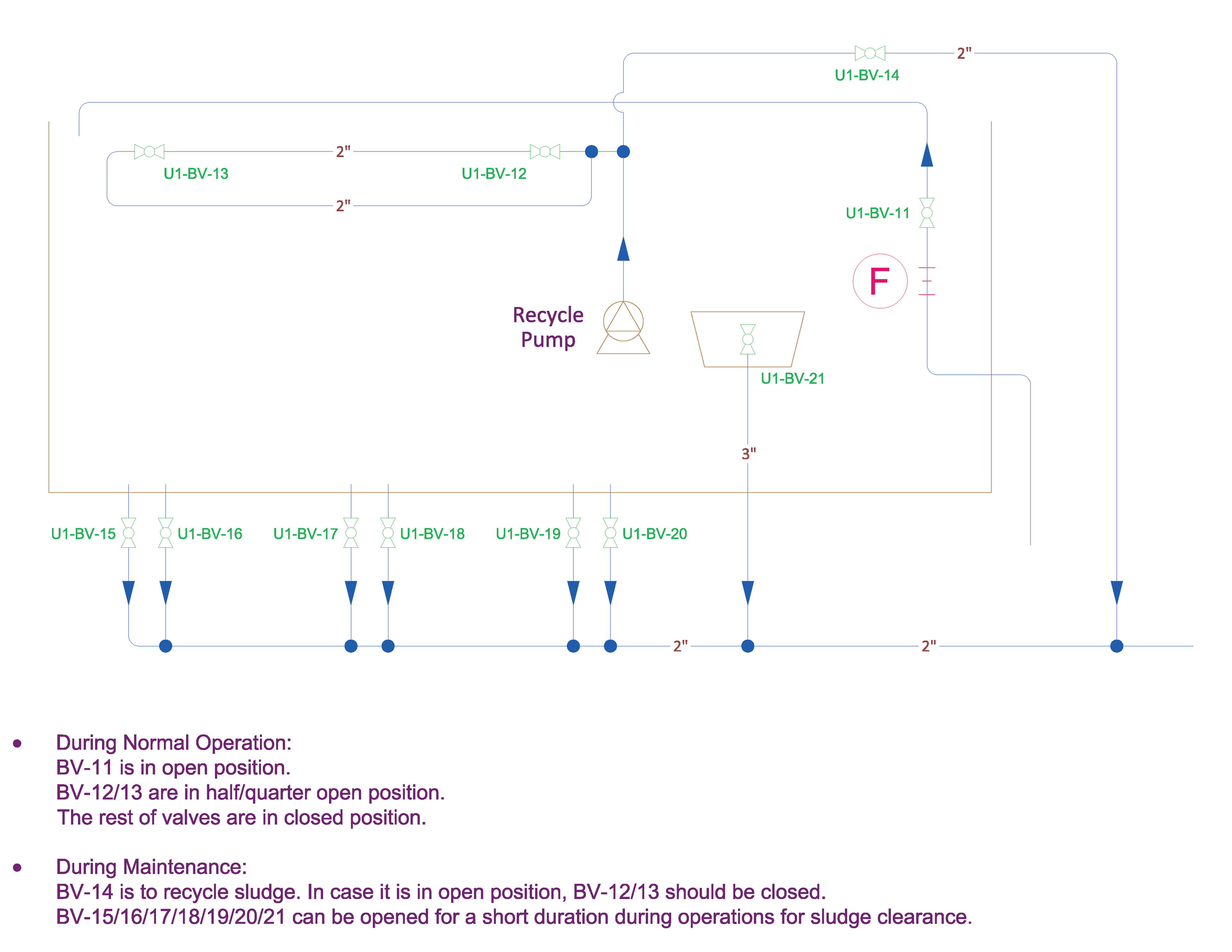

Uni-recycling - Iraq Sewage Treatment Plant P&ID 1

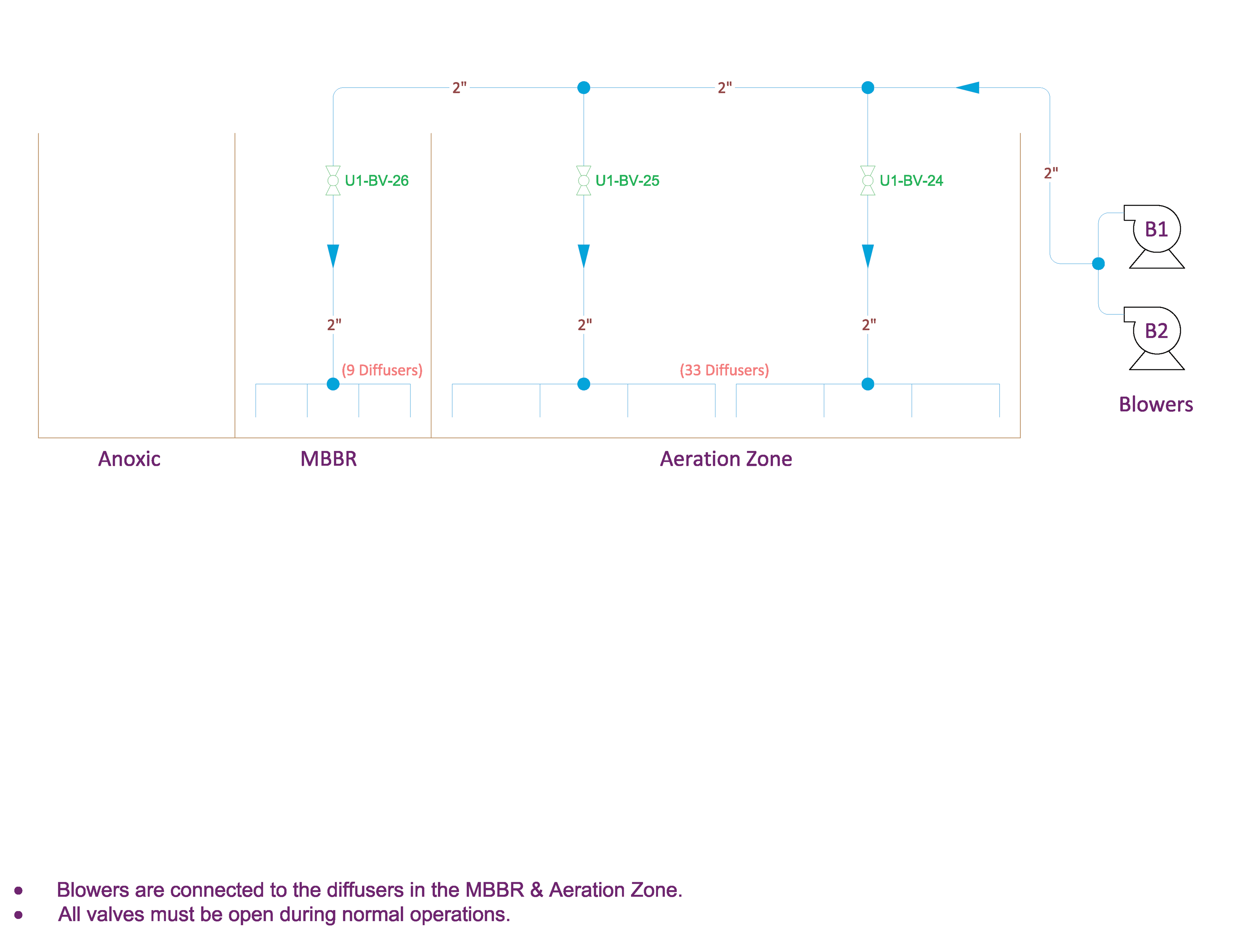

Uni-recycling - Iraq Sewage Treatment Plant P&ID 2
Uni-recycling - Iraq Sewage Treatment Plant P&ID 3
Uni-recycling - Iraq Sewage Treatment Plant P&ID 4

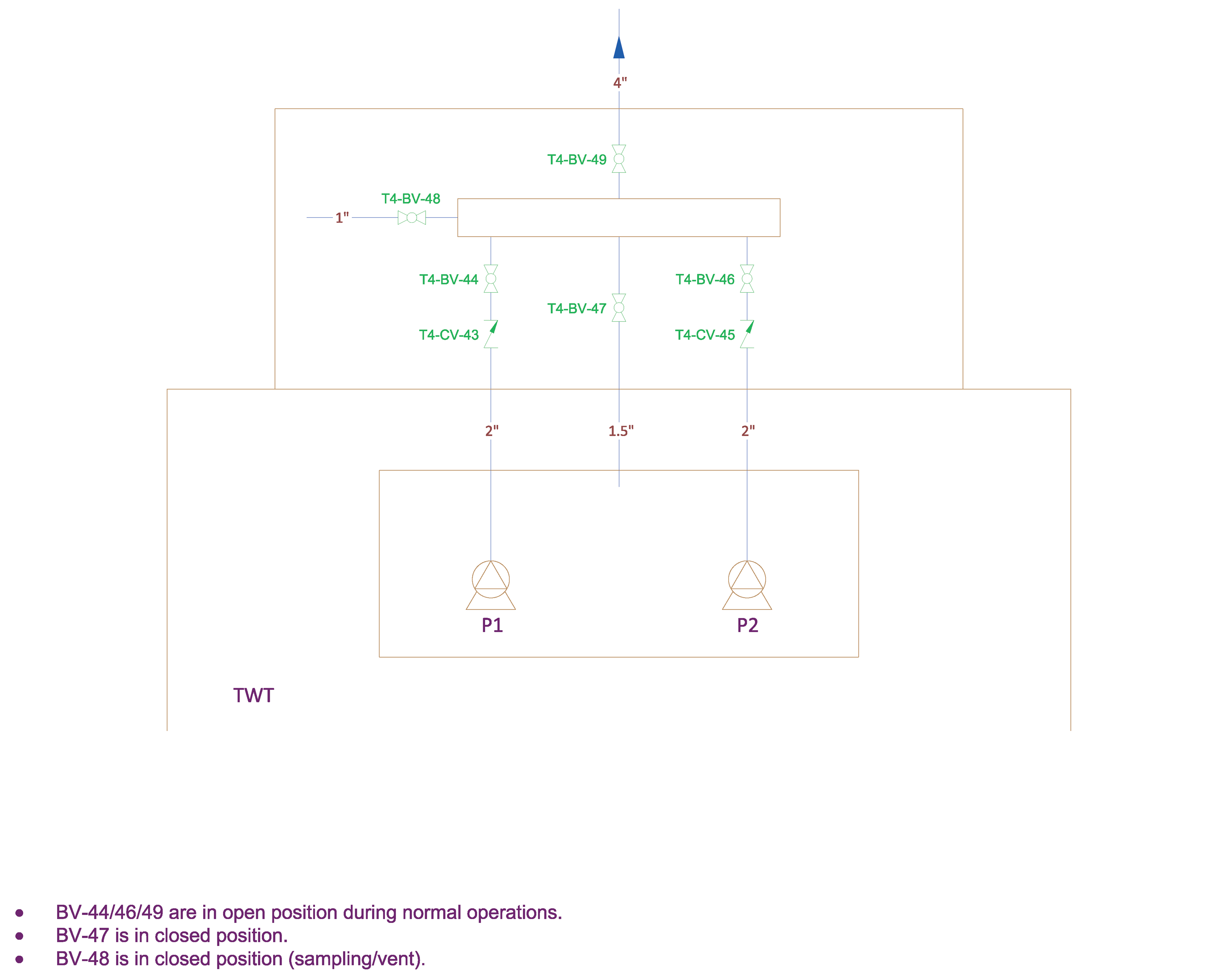

Uni-recycling - Iraq Temporary Lifting Station P&ID
